CLB

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
 Nominal Load from 30 kN to 1000 kN
 Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V

  • Categories: Force transducers
  • Tags:

Column force transducer suitable for the calibration of material testing machines.
High mechanical resistance.
Completely made of stainless steel.
Completely LASER welded.
Degree of protection IP67.
Long term stability.

ACCESSORIES

Calibration Report: COMPRESSION

Calibration Report: TENSION

ACCREDIA certificate COMPRESSION

ACCREDIA certificate TENSION

ACCREDIA certificate BIDIRECTIONAL

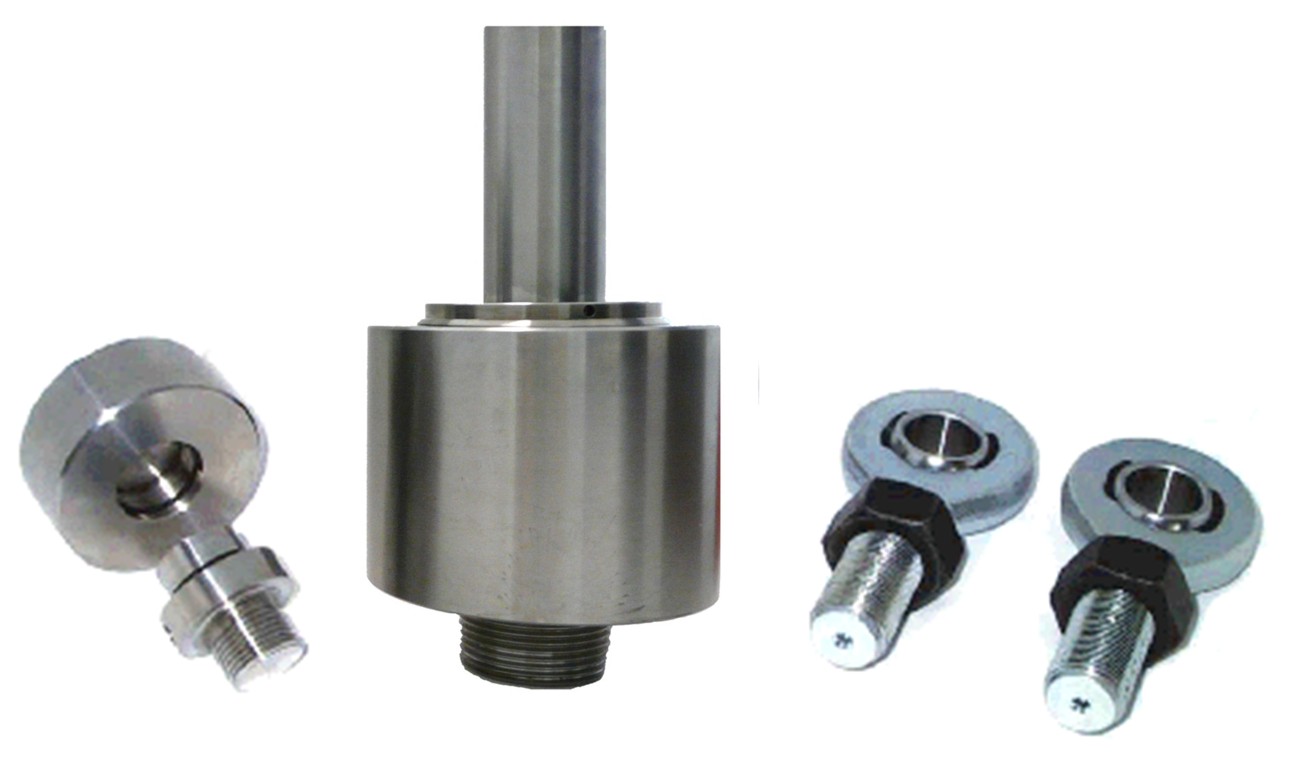

Joints to be used for COMPRESSION application

Loading head (TIC)

Spherical loading head (CTS)

Joints to be used for TENSION application.

Knuckle joints (ACCEM) TENSION

Download

Data sheet CLB
Data sheet ACCEM
Certificate CE
EAC Certificate

Download 3D

CLB 200-300kN with accessories
CLB 100kN

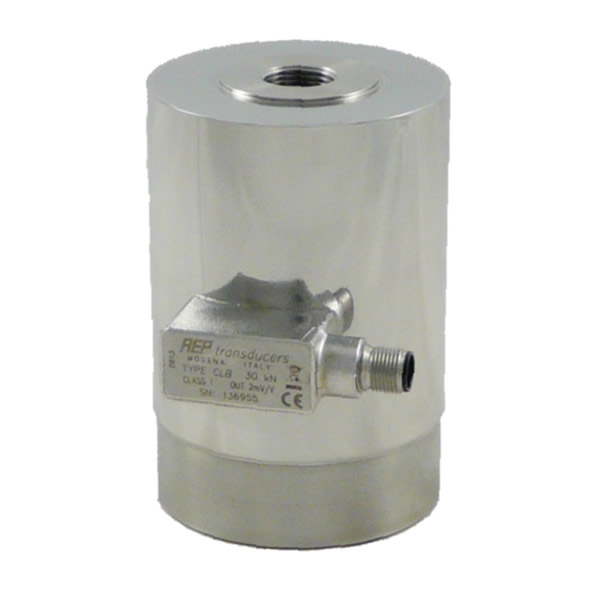

CLB 30kN
CLB 600kN
CLB 600kN with ISO accessories
CLB 500kN
CLB 500kN with knuckle joints
CLB 500kN with ISO accessories

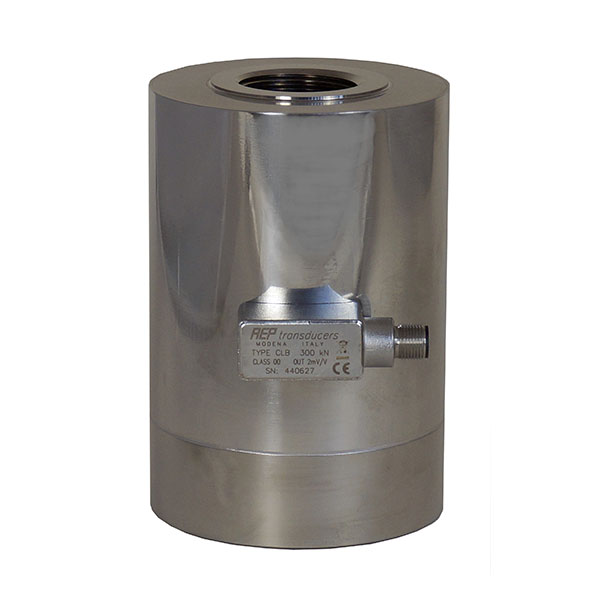

CLB 300kN
