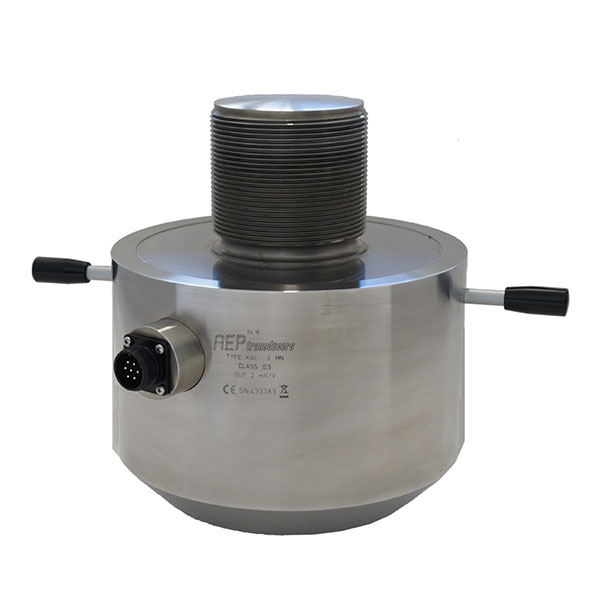

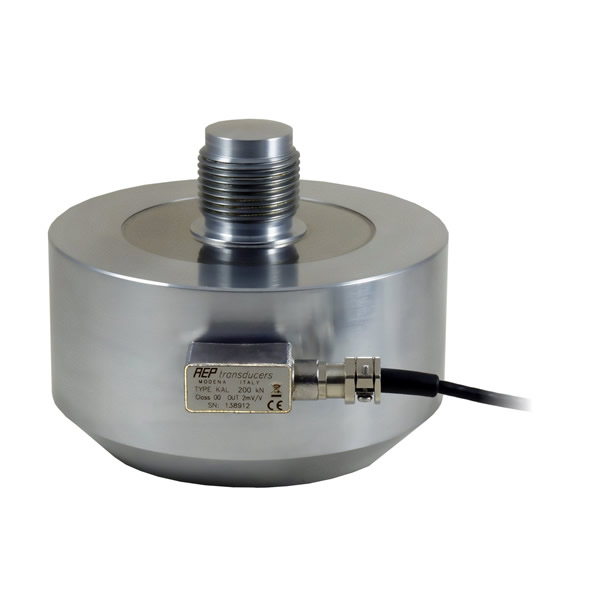

KAL

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
 Nominal Load from 10 kN to 2 MN
 Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V

  • Categories: Force transducers
  • Tags:

Force transducer suitable for the calibration of material testing machines and metrological comparisons between laboratories.
Excellent metrological features stated by the Metrological Research National Institute (I.N.RI.M.).
High stability given by monolithic structure.
Structure optimization thanks to the F.E.M. design.
Off-center loads compensation ±0.005% F.S.
Low sensitivity to supporting surfaces ±0.002% F.S.
Easy application for tension and compression.
Easy to handle thanks to its light weight (1MN about 36kg).

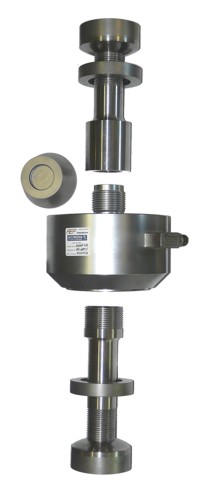

ACCESSORIES

Calibration Report COMPRESSION

Calibration Report TENSION

ACCREDIA certificate COMPRESSION

ACCREDIA certificate TENSION

ACCREDIA certificate BIDIRECTIONAL

For COMPRESSION applications
Loading head (TIC)
Load base

Tension screw for TENSION applications

For COMPRESSION applications
Loading head (TIC)

For TENSION applications

No. 2 rods with ball joints

Aluminum cases for transport

Download

Data sheet KAL
Certificate CE
EAC Certificate

Download 3D

KAL 100kN
KAL 1MN
KAL up to 50kN
KAL 750kN
KAL 500kN
KAL 300kN
KAL 200kN
