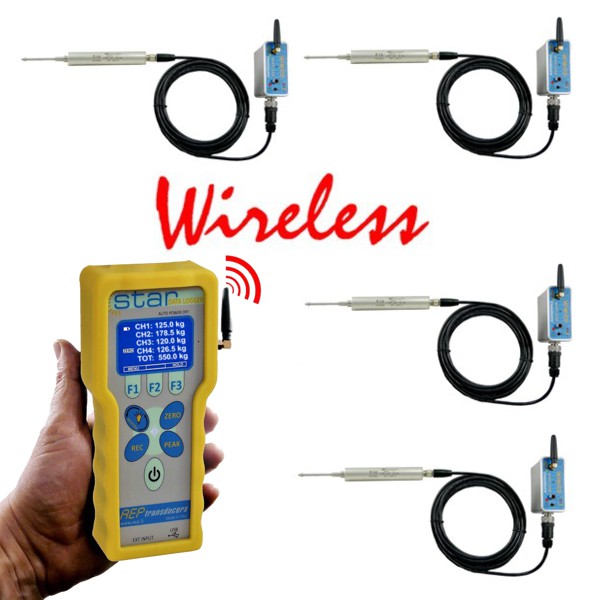

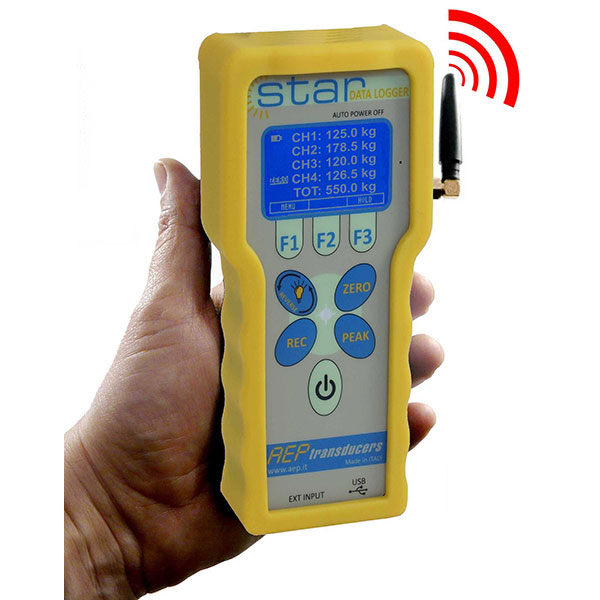

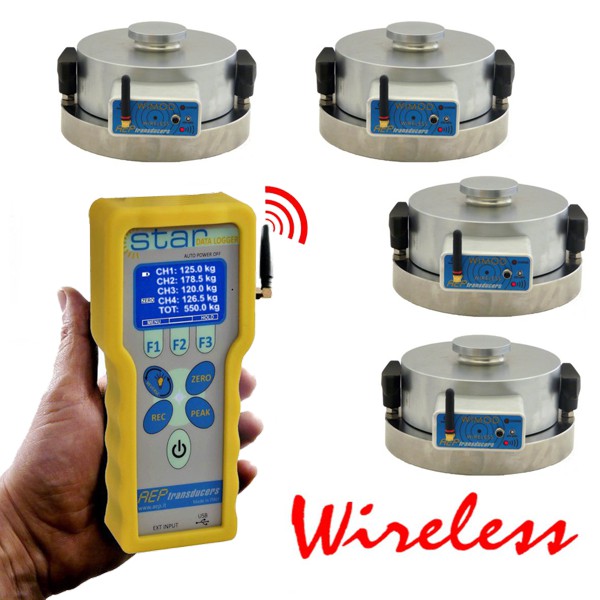

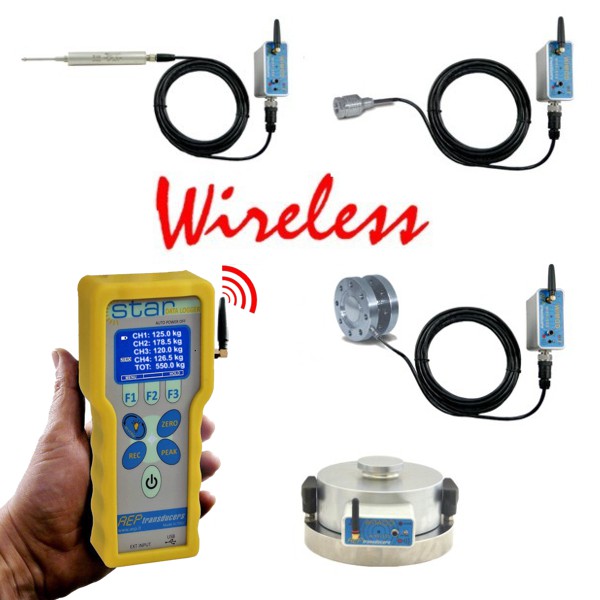

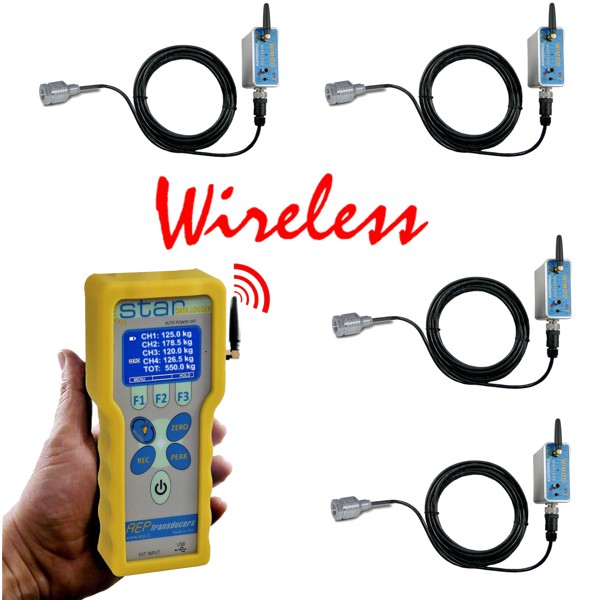

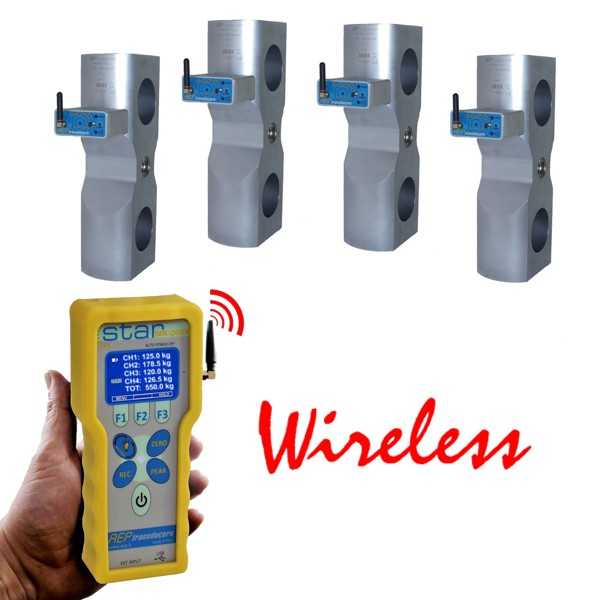

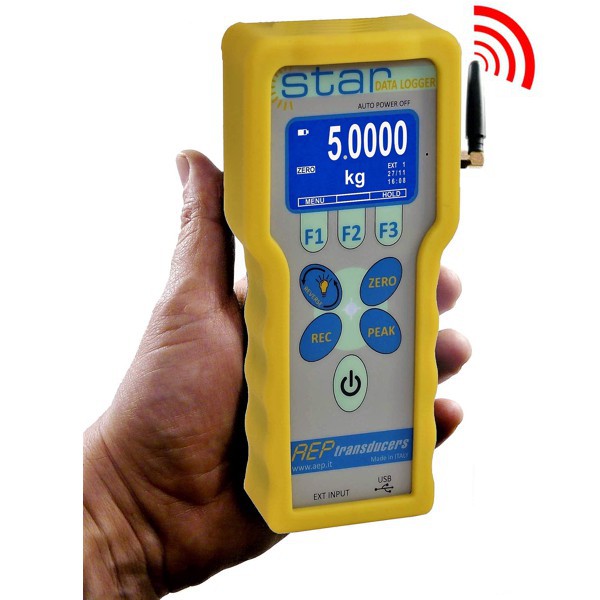

Professional ergonomic receiver to measure FORCE, WEIGHT, PRESSURE, TORQUE and DISPLACEMENT, extremely versatile and easy to be used. Through an integrated wireless communication system it is possible to directly interface with 1, 2, 3 or 4 WIMOD modules at the same time in the real time. The transmission frequency at 433 MHz makes the communication safe and reliable even in presence of other transmission systems such as mobile phones, walkie-talkie, radio-microphones, remote-controls etc. which usually work on other frequencies by ensuring a covering of approx. 100 meters in free space. WiSTAR is equipped with USB interface for communicating in real time with a PC for recharging the long lasting and highly reliable internal battery (Li-Ion). In addition to the direct reading of the measurements it is possible to detect PEAKS and to block the measurement on the display thanks to HOLD function. LCD graph DISPLAY with 3 levels of backlighting to adapt itself to any conditions of external brightness and with the possibility of rotating the visualization of 180°. DATALOGGER allows to memorize measurements and to keep them in the internal memory even in case of instrument switching off. (max. 130.000 recordings)
Metal case
Li-Ion internal battery which ensures a 24 hours AUTONOMY
Protection class IP40
Functions ZERO, FILTER, PEAK, AUTO POWER OFF, DATA LOGGER, REC …..
USB output
Included: travelling case made of ABS and feeder with USB cable
ACCESSORIES
Travelling case
feeder with USB cable
Quik Analyzer Light:
Software for monitoring analyzing and recording the run of tests which can involve up to 1 instrument.
Load cell for the measurement of static and dynamic loads in TENSION
Nominal Load from 5 tons to 20 tons
Class (OIML R60) C2 and C3
Combined Error: 0,019%
Output: 2mV/V
on request
RELATIVE pressures from 100 mbar to 3000 bar ABSOLUTE pressures from 1 bar to 10 bar Relative VACUUM measure -1 bar TEMPERATURE measures from 0 to 50 °C linearity and hysteresis 0.20% STANDARD version linearity and hysteresis 0.10% high accuracy Backlit display DATA LOGGER programmable to record the trend of PRESSURE and
TEMPERATURE over time. Replaces chart recorders.
WIRELESS transmission Max. distance 100 m in free area
Professional WIRELESS transmitter to measure FORCE, WEIGHT, PRESSURE, TORQUE and DISPLACEMENT, to be applied directly on the body of the sensor or in version stand alone. Through a wireless communication integrated can interface directly in real time to: PC – TABLET – WISTAR – WIMP2plus – PLC Extremely versatile and simple to use. Transmits up to 200m in free area.
Load cell for the measurement of static and dynamic loads in TENSION
Nominal Load from 20 tons to 100 tons
Linearity: 0,10%
Output: 2mV/V
on request
